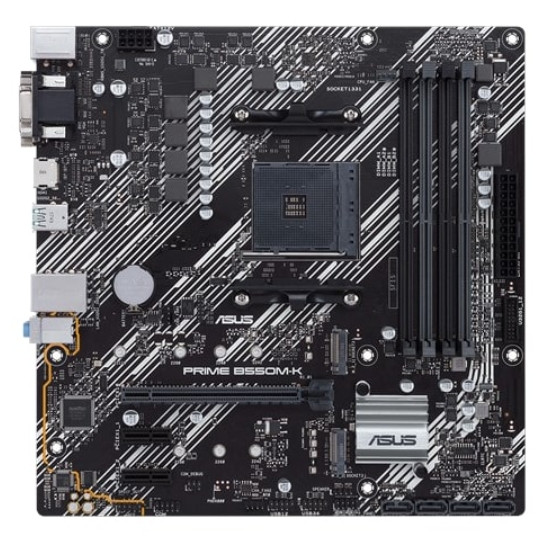

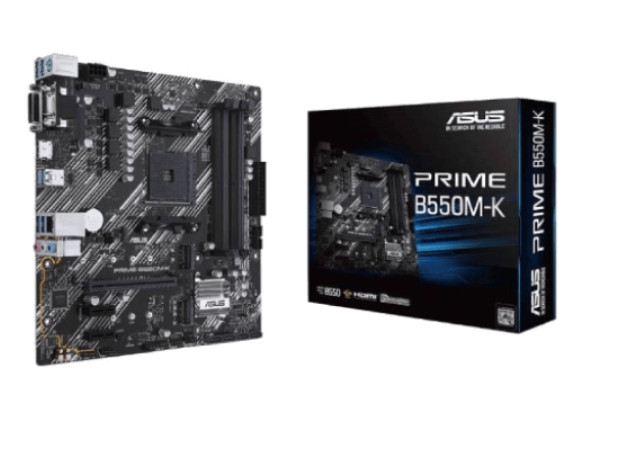

Asus PRIME B550M K

Opis

Model: Asus PRIME B550M K
Tip procesora: AMD
Podnožje: AMD® AM4
Čipset: AMD® B550
Format ploče: Micro ATX
Memorija:
Podržana memorija: DDR4
Memorijski slotovi:
3rd Gen AMD Ryzen Procesora:
4 x DIMM, Max. 128GB, DDR4 4600(O.C)
/4400(O.C)/4266(O.C.)
/4133(O.C.)/4000(O.C.)/3866(O.C.)
/3733(O.C.)/3600(O.C.)/3466(O.C.)
/3333(O.C.)/3200/3000/2800/2666/2400
/2133 MHz Un-buffered memoriju
3rd Gen AMD Ryzen sa Radeon grafičkim procesorima:
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)
/4266(O.C.)/4133(O.C.)/4000(O.C.)
/3866(O.C.)/3733(O.C.)/3600(O.C.)
/3466(O.C.)/3333(O.C.)/3200/3000/2800
/2666/2400/2133 MHz Un-buffered memoriju
Dual Channel Memory Architecture
ECC Memory (ECC mode) podrška varira od CPU
Grafička karta:
Integrisana grafička karta:
1 x D-Sub
1 x DVI-D
1 x HDMI 2.1(4K@60HZ)
Slotovi za proširenje:
3rd Gen AMD Ryzen procesori:
1 x PCIe 4.0 x16 (x16 mode)
3rd Gen AMD Ryzen sa Radeon grafičkim procesorima:
1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset:
2 x PCIe 3.0 x1
Skladištenje:
Maksimalno podržava: 2 x M.2 slot(s) i 4 x SATA 6Gb/s porta
M.2 slotovi:
3rd Gen AMD Ryzen procesori:
1 x M.2_1 podnožje 3, sa M Key, tip 2242/2260/2280/22110
(PCIE 4.0 x4 i SATA modes) storage uređaja
3rd Gen AMD Ryzen sa Radeon grafičkim procesorima: 1 x M.2_1 podnožje 3, sa M Key, tip 2242/2260/2280/22110
(PCIE 3.0 x4 i SATA modes) storage uređaja
AMD B550 Chipset: 1 x M.2_2 podnožje 3, sa M Key, tip 2242/2260/2280
(PCIE 3.0 x4 i SATA modes) storage uređaja
SATA porta: 4 x SATA 6Gb/s port(s)
Raid podrška: Raid 0, 1, 10
Mrežna karta:
Realtek RTL8111H 1Gb Ethernet
ASUS LANGuard
Zvučna karta:
Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
Audio Feature:
LED-illuminated design
Audio Shielding
Dedicated audio PCB layers
Premium Japanese audio capacitors
USB:
USB portovi sa zadnje strane (Total 6):
2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
USB portovi sa prednje strane (Total 6):
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)

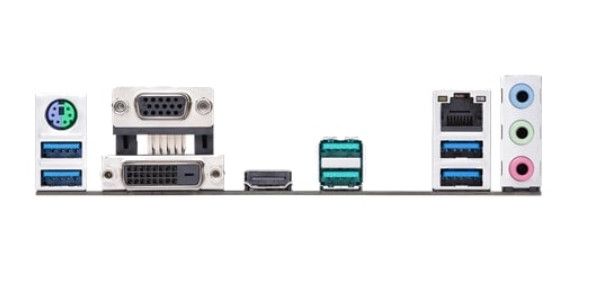

Konektori na zadnjoj strani:
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4 x USB 3.2 Gen 1 (blue) Type-A
3 x Audio jack(s)
Interni konektori:
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) konektor podržava dodatna 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 konektora podržavaju dodatna 4 USB 2.0 port(s)
1 x M.2 podnožje 3
sa M Key, tip 2242/2260/2280/22110 storage ueđaja
(SATA mode & X4 PCIE mode)
1 x M.2 podnožje 3 sa M Key,
tip 2242/2260/2280 storage uređaja (SATA mode & X4 PCIE mode)
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector
BIOS:
256 Mb Flash ROM, UEFI AMI BIOS
